How an electrostatic precipitator works.

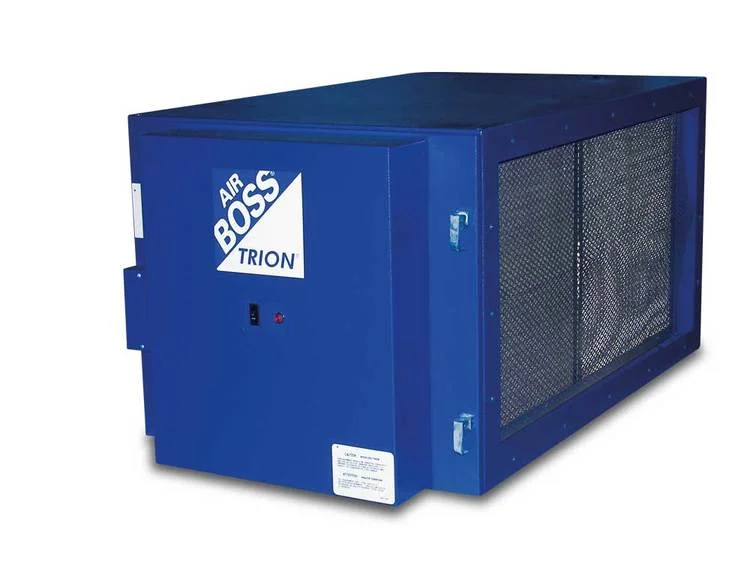

Image shows Air Boss® T-Series 2002

Image shows Air Boss® T-Series 2002

Unlike media air cleaners that use replaceable filters that clog up when dirty, electrostatic precipitators contain permanent cells that can be washed, either manually or with an automatic wash system. The permanent cells, even when dirty, still operate at very low static resistances when compared to a media filter.

This typically means motors are 1 to 2 sizes smaller, saving the operator energy costs, as well as the cost of disposing of dirty filters.

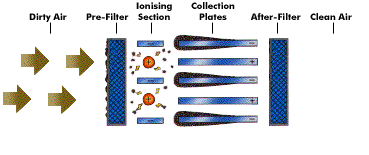

Step by Step Example

  1. Air is drawn into the unit to capture particles.
  2. The airborne particles pass through an electrostatic field and receive an ionised charge.
  3. The charged particles move into a collector, where each alternate plate is charged with the same polarity as the particles.
  4. This drives the particles to the second set of plates where an opposite charge attracts and collects the particles.
  5. The cleaned air is then exhausted.
